Aksa

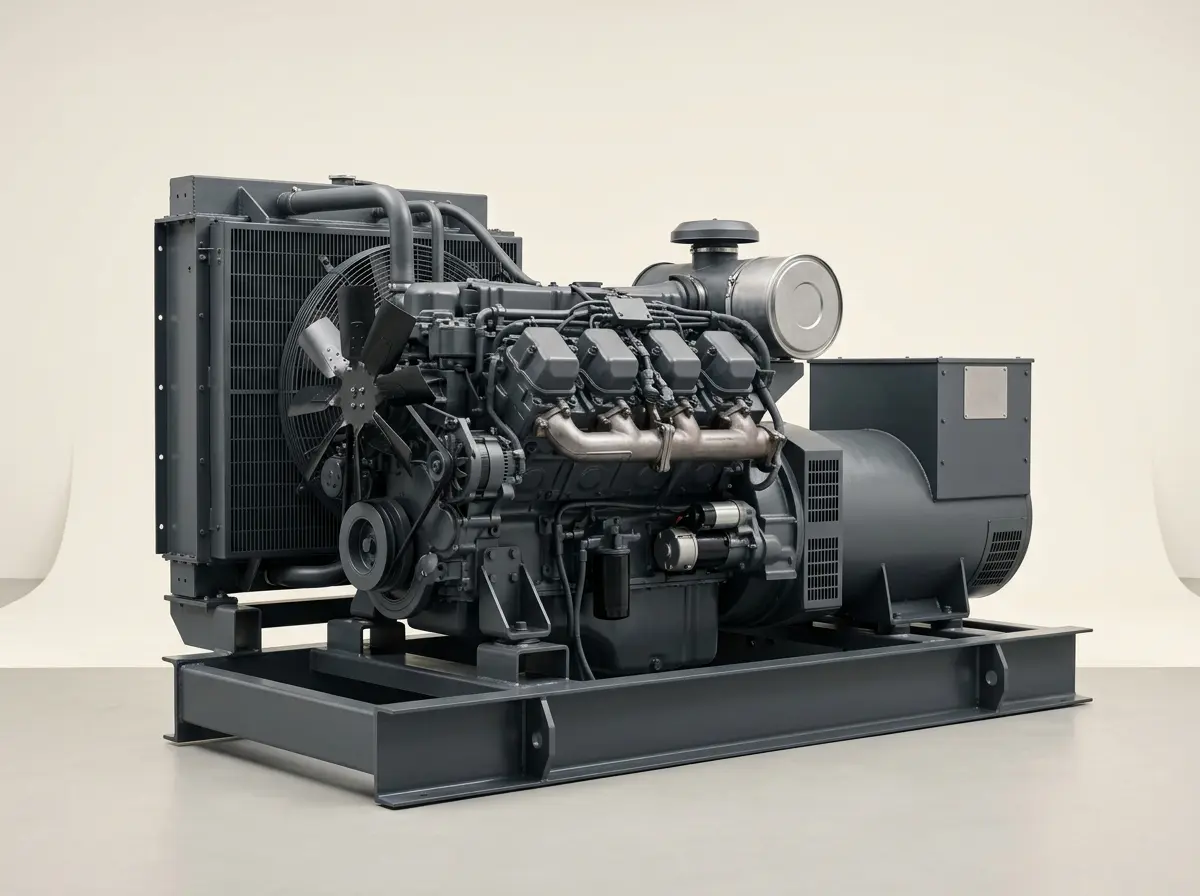

Aksa AC 550 – 550 kVA Diesel Generator Set (Cummins engine)
Three-phase 50 Hz diesel generator set, 500 kVA prime / 550 kVA standby, Cummins - QSX15-G8 engine and InteliGen NT controller.
Technical specifications
| Prime power | 500 kVA / 400.00 kW |
|---|---|
| Standby power | 550 kVA / 440.00 kW |
| Voltage | 230/400V |
| Frequency | 50 Hz |
| Phase | 3 |
| Engine | Cummins - QSX15-G8 |
| Cylinders | 6 cylinders - in line |
| Displacement | 14.9 L |
| Engine speed | 1500 rpm |
| Governor | ECM |
| Cooling | Water Cooled |
| Alternator | Mecc Alte - ECO 40-3S/4 B |
| AVR | DER1 |
| Insulation class | H |
| Protection class | IP23 |
| Control panel | InteliGen NT |
| Fuel consumption at 100% prime load | 101 l/h |
| Battery (units × Ah) | 2x120 |
| Open-set dimensions (L × W × H) | 3380 × 1550 × 2100 mm |
| Open-set dry weight | 3850 kg |
Values are reproduced as published in the manufacturer datasheet. Final specifications are confirmed in the quotation.
