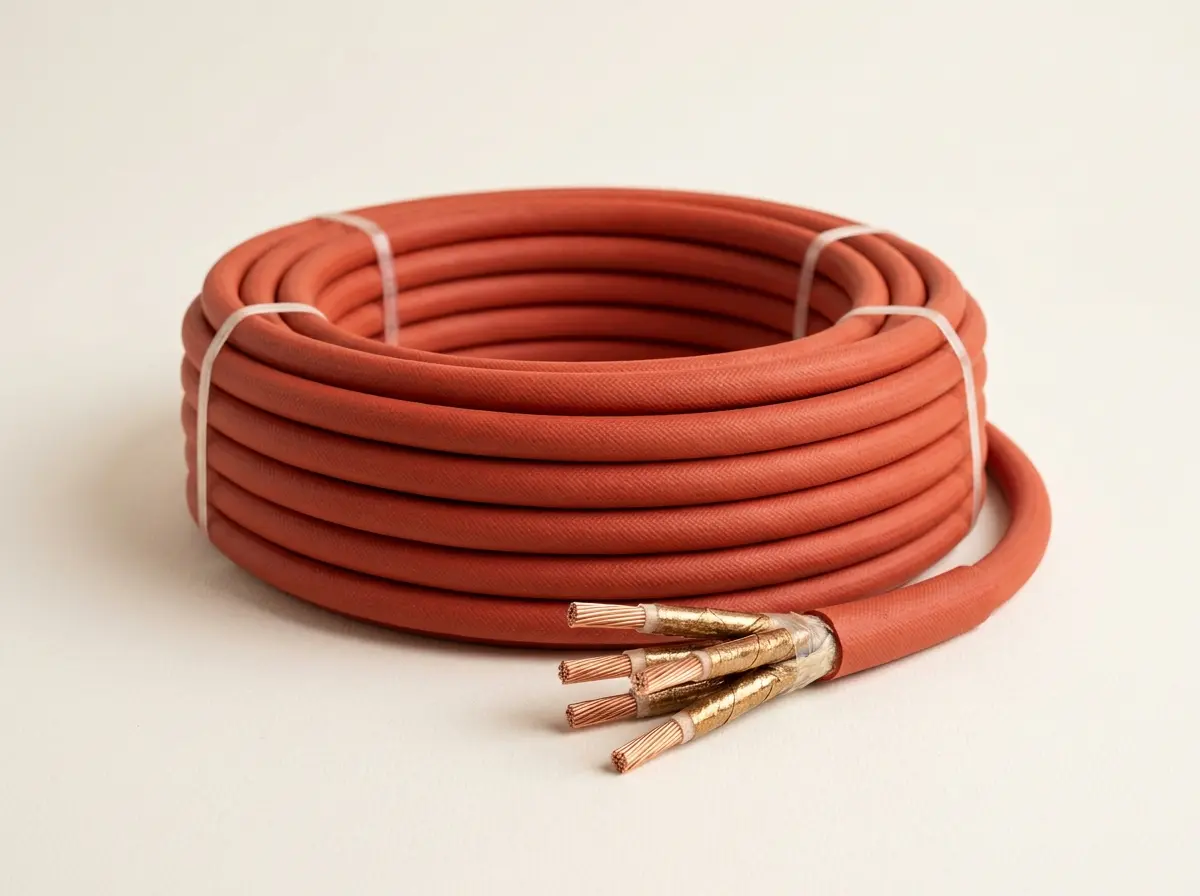

Nexans NX300 Fire-Resistant Multi-Core Cable
Fire-resistant, halogen-free multi-core cable with mica-tape and XLPE insulation, maintaining circuit integrity for 180 minutes for alarm and emergency systems.
Technical specifications
| Standard | BS 7846 |
|---|---|
| Rated voltage Uo/U | 0,6/1 kV |
| Conductor material | Copper |
| Conductor flexibility | Circular, stranded, class 2 |
| Insulation | XLPE + Mica tape |
| Sheath colour | Black |
| Max. conductor temperature in service | 90 °C |
| Short-circuit max. conductor temperature | 250 °C |
| Operating temperature | -20 ... 90 °C |
| Fire resistance | BS 6387 CWZ |
| Flame retardant | IEC 60332-3-24 Cat. C |
| Halogen free | IEC 60754-1 |
| Smoke density | IEC 61034-2 |
| Number of cores | 2 – 4 |
| Cross-section range | 1.5 – 400 mm² |
Values are reproduced as published in the manufacturer datasheet. Final specifications are confirmed in the quotation.
