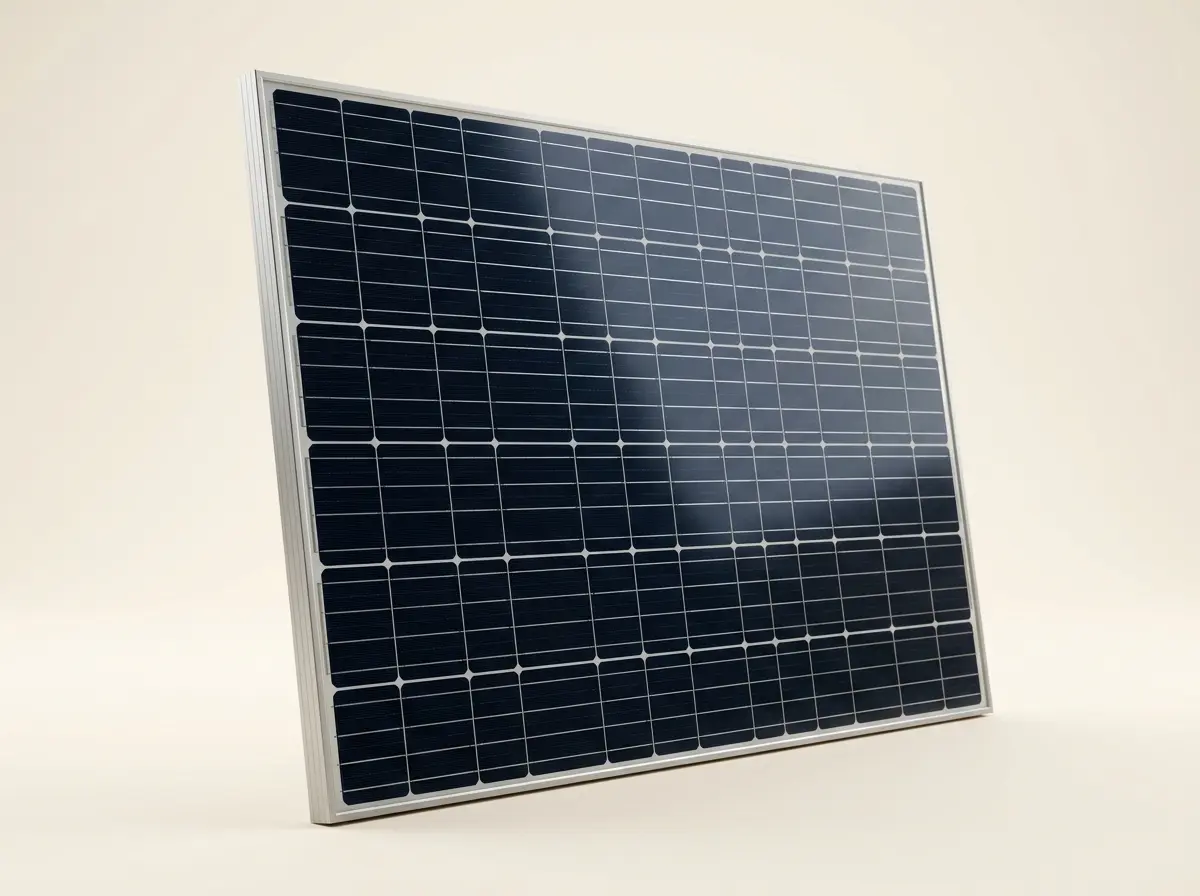

JA Solar DeepBlue 4.0 JAM72D40-580/MB 580 W Bifacial Module

n-type double-glass bifacial module, 144 cells, 580 W at STC.

Technical specifications

Rated power (Pmax)	580 W
Open-circuit voltage (Voc)	51.95 V
Max. power voltage (Vmp)	44.02 V
Short-circuit current (Isc)	13.84 A
Max. power current (Imp)	13.17 A
Module efficiency	22.5 %
Power tolerance	0~+3%
Temperature coefficient (Pmax)	-0.290%/°C
Cells	144 (6×24), Mono
Dimensions	2278±2mm × 1134±2mm × 30±1mm
Weight	31.8kg
Junction box	IP68, 3 diodes
Glass (front / back)	2.0mm/2.0mm
Max. system voltage	1500V DC
Operating temperature	-40°C~+85°C
Bifaciality	80%±10%
Packaging	36pcs/Pallet, 720pcs/40HQ Container

Values are reproduced as published in the manufacturer datasheet. Final specifications are confirmed in the quotation.
